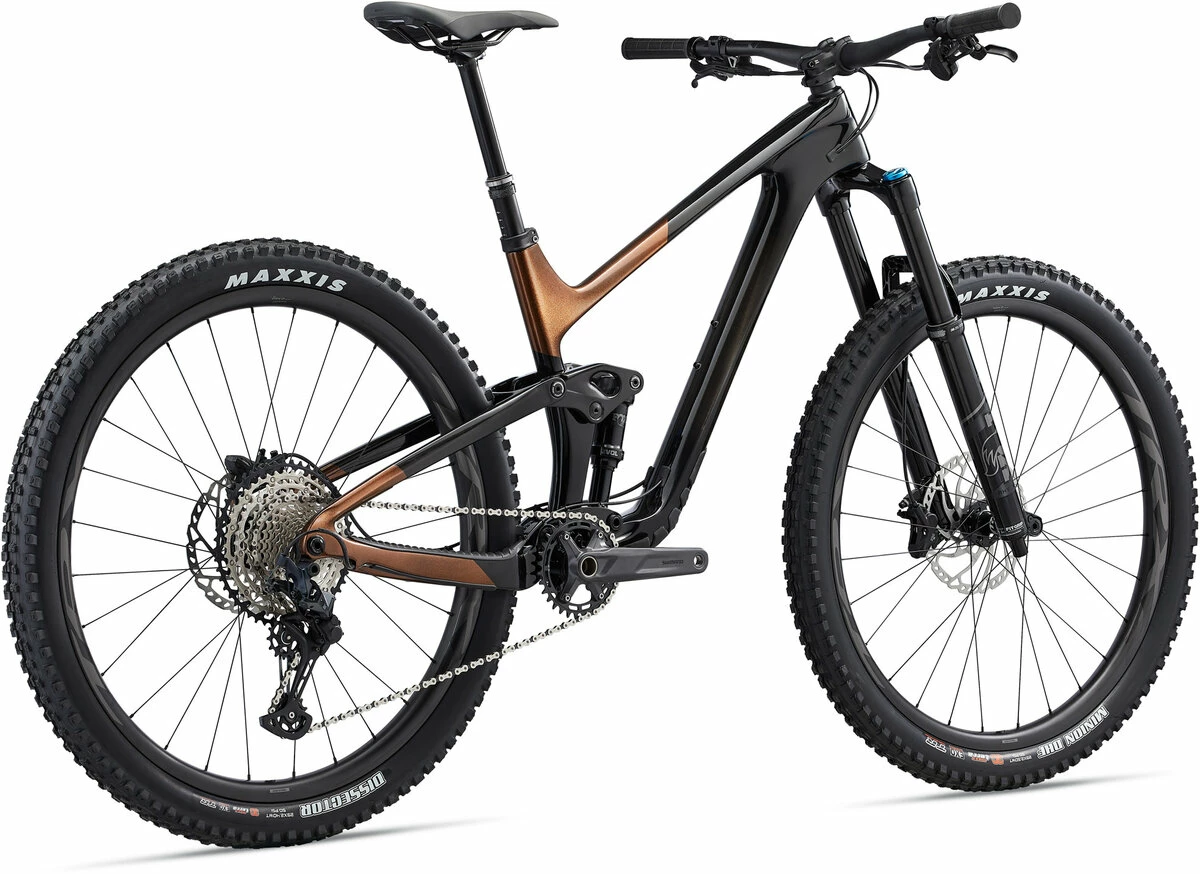

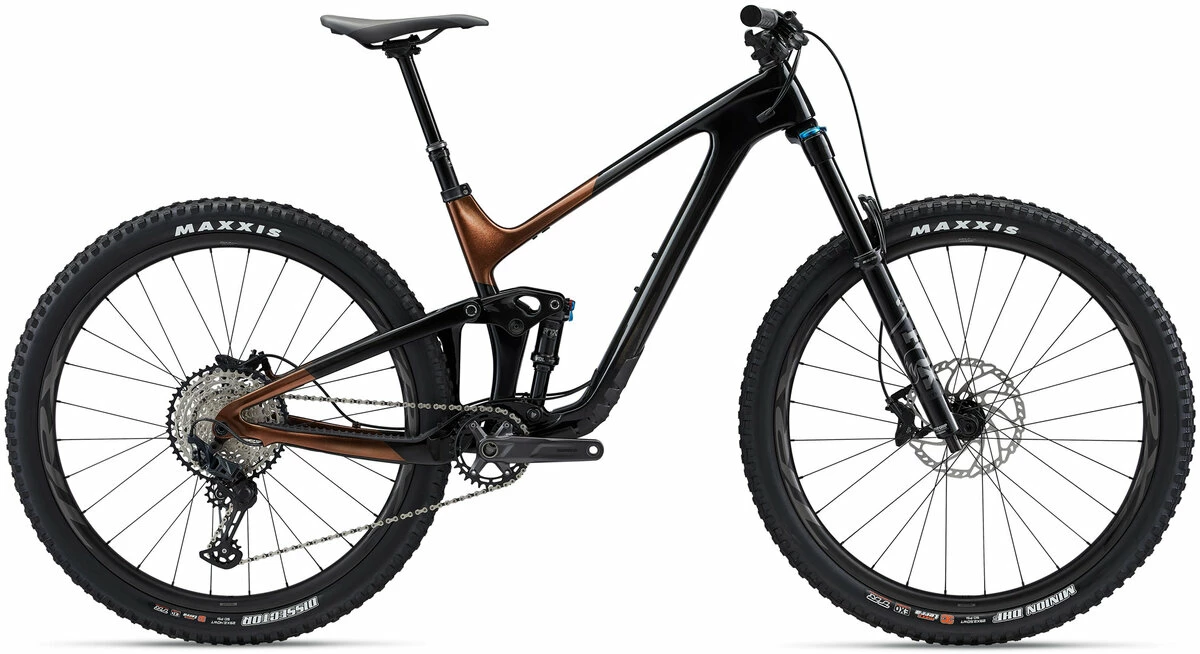

This full-composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-stage adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. A flip chip lets you choose either low or high frame geometry settings, which adjusts the headtube and seattube angle, along with the bottom bracket drop, to fine tune handling for your riding style and terrain.
| Size | Small, Medium, Large, X-Large |
|---|---|
| Cassette/Freewheel | Shimano SLX, 10×51 |
| Saddle | Giant Romero SL |
| Seatpost | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm |
| Stem | Giant Contact SL 35 |
| Tape/Grips | Giant Tactal Pro Single |
| Handlebars | Giant Contact TR35, 780x35mm, 20mm rise |
| Brake Levers | Shimano Deore BL-M6100 |
| Brakes | Shimano Deore BR-MT6120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Chain | KMC X-12 |
| Rear Derailleur | Shimano SLX RD-M7100 |
| Frame | Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle |
| Shifters | Shimano SLX M7100, 1×12 |
| Crankset | Shimano M511, 30t |
| Bottom Bracket | Shimano, press fit |
| Tires | [F] Maxxis Minion DHF 29×2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29×2.4, EXO, TR, tubeless |
| Spokes | Giant TRX 2 Carbon 29 WheelSystem |
| Hubs | Giant TRX 2 Carbon 29 WheelSystem |
| Rims | Giant TRX 2 Carbon 29 WheelSystem |
| Rear Shock | Fox Float DPS Performance, 185/55, custom tuned for Giant |
| Fork | Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15×110 Kabolt, 44mm offset, custom tuned for Giant |
| Accessories & Extras | tubeless prepared, 2.5" max tire size, 34t max chainring size, 3M tailgate protector |
